July 2006
Product Information
KAIREN Co., Ltd.
|
|
USB20SVGA-MB & Multiple Monitor Power Tools
"Sign as VGA Marine-Blue Box Plus" will be released.
Release Date July 24, 2006 Suggested Retail Price 13,500 Yen (tax
included)
|
 |

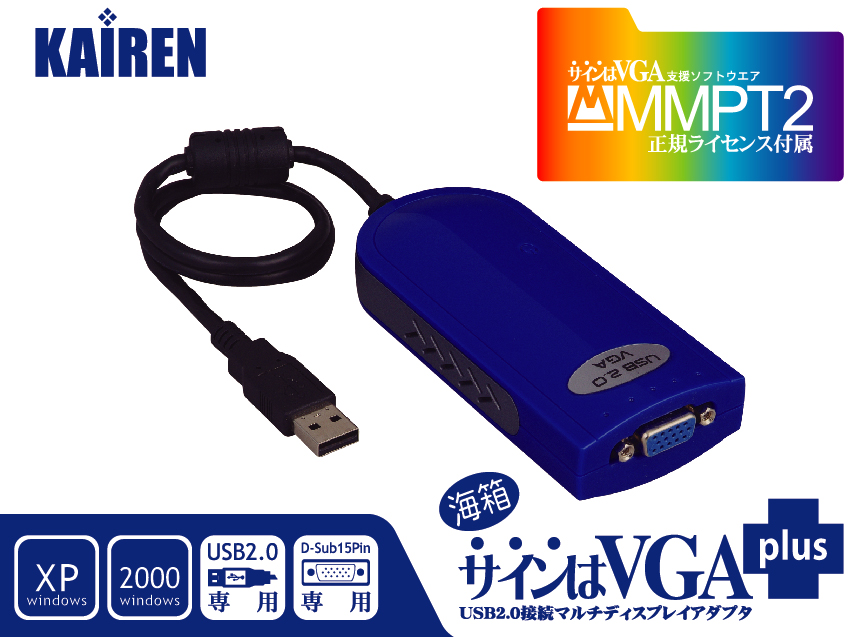

■"Sign as VGA
Marine Blue Box Plus" is an USB connection multi display
adapter with dedicated application software of "MultipleMonitorPowerTools2
(hereafter called MMPT2)" enclosed in the package.
This can be used in parallel with other existing models of "Sign
as VGA" series; Blue Box, Green Box and White Box.
"ＭＭＰＴ２" is an application software
dedicated to "Sign as VGA" used for functional enhancement
on the multi display features. |
|
| Main Features of Multiple Monitor
Power Tools２ |
■Simple
and easy window operation！ "Window Operation Button"
With one click of button, "Terminate all windows"
or "Minimize all windows" can be performed.
Also, a specific window can easily be shifted to arbitrary monitor
by using "GUI Icon". Window actions can easily be
done with only one click on the button. |
|
■Recognizes
the currently used application intuitively！ "Entended Taskbar"
A feature for displaying the taskbar that are shown only on
the main monitor to the extended monitor.
As the information of the application currently activated will
be displayed on the taskbar of the same monitor, you can easily
identify the multiple windows one from the other. |
|
■A
window maximized with one click！ "Full Screen Display Button"
Normally, "window maximization" refers to the feature
for displaying the enlarged display on one screen of the monitor.
However, "Full Screen Display Button" of the MMPT
enables to display the enlarged display to all currently used
monitors.
Therefore, in the case when it is difficult to display a spreadsheet
on one screen, it can be displayed on multiple monitors with
only one click without the need of resizing. |
|
■Utilizing
clone desktop！ "Writing Tool"
"Writing Tool" will be activated by setting "Mirror
Mode" of MMPT2 to valid. This enables to write directly
on the desktop display and the written contents will be reflected
on other monitors in real time. The "Desktop Display"including
the written contents are saved in the BMP file format. |
|
■No
troublesome rearrangement is required！ "Window Fixation
Redisplay Button"
This feature enables to display the image on the same position
in the same size from next time by memorizing the display position
of the windows. This saves you time required for position arrangement
when working with multiple windows opened. |
|
＊"Multiple Monitor Power Tools2" attached to this product
can also be used with other "Sign as VGA" series.
|
Product Description
|
Product Name
|
Sign as ＶＧＡ Marine Blue Plus
|
|
Model Number
|
ＵＳＢ20ＳＶＧＡ-ＭＢ-ＰＬＵＳ
|
|
Compatible PC Environment
|
PC with ＵＳＢ2.0 port
Environment where CD-ROM drive or internet connection is available
（Required upon driver installation）
|
|
Compatible OS
|
WindowsXP/2000
|
|
Connector Type
|
PC Side：USB2.0（Type A） Cable Length 500mm
Monitor Side：D-Sub15pin RGB Connector
|
|
Dimension/Weight
|
Main Unit：50（W） ｘ 25（H） ｘ 115（D） mm / 120ｇ（main
unit only）
|
|
Power Voltage/Consumption Current
|
5.0V（power supplied from USB connector） / 500mA
|
|
Environmental Requirement
|
0〜40℃, humidity 20〜80％ （Non condensing）
|
MMPT2 Mandatory Operational Environment
|
OS
|
Windows 2000
|
Windows XP
|
|
CPU
|
Pentium 150MHz or more
|
Pentium 233MHz or more
|
|
Available Memory
|
32MB or more recommended
|
64MB or more recommended
|
|
Hard Disk
|
100MB or more available space for memory
|
|
Display
|
SVGA（800ｘ600） or more, display of 256 colors
or more
|
|
［Package Contents］
Sign as VGA main unit ×1 unit
Instruction Manual ×1 copy
CD-ROM Driver ×1 copy
MMPT2 CD-ROM ×1 copy
Product Warranty ×1 copy |
|
|
【Contact
below for product related inquiries】
KAIREN Co., Ltd.
Hoei BLDG. 11-1, Miyuki-cho, Tokorozawa-shi, Saitama Pref. Zip 359-1115
TEL：81-4-2929-6296 FAX：81-4-2929-6297
・Inquiries related to our products
 |
