	February 2005 New Product Information

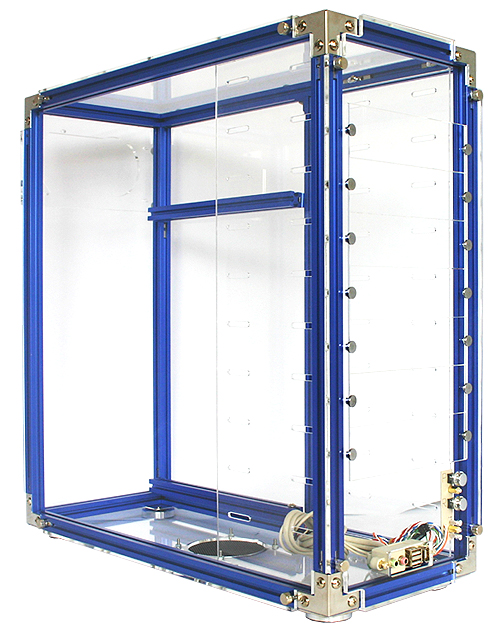

A New Release of "Lubic StandardATX" Series, a High-end Acrylic PC Case Assembly Kit

KAIREN Co., Ltd. will start the launch of "Lubic StandardATX", a kit for building PC case with aluminum frames and acrylic panels, from the end of February 2005. This is an attractive PC case having a beautiful design produced by aluminum frames and high-purity acrylic panel with enabling a customization of rich accessory parts.

　■"Lubic StandardATX" Main Feature
１. Craftman's Ideas Put into High-purity Acrylic Panels and Aluminum Frames！
A top level high-purity acrylic panels are adopted in Lubic StandardATX, and therefore performs a high clearness with lesser color fade-out caused by the aged deterioration. It provides an extraordinary quality inimitable with other PC cases by focusing on the treatment on the cut surface of acrylic.
An alumite treatment is conducted on each piece of aluminum frames in order to perform a beautiful surface with being resistant to decay.

２. Design Sticked Thouroughly to Additional Establishment
7 steps of 5 inch bay are equipped on ATX middle tower case. 10 units of devices can be mounted including shadow bays.
In addition, a further additional establishment can be performed by adding Lubic frames with utilizing the internal space of the case.
３. Performing User's Imaginations
Different from the general PC case, the acrylic material used in this product has richness in workability. It is flexible with punching and bending which was difficult to be conducted with steel material. As frames and acrylics are separated, it enables to assemble PC cases in accordance with user's request by using favorable materials.


Create with acrylic panels and frames	Persist on Processing	Persist in Additional Establishment
Mounting acrylic panels on the cabinet of aluminum frames. A beautiful forum consist of lines and planes.	Spending a lot of time and effort on the surface treatment.	10 units of devices such as 5 inch bay ｘ７ steps and shadow bay ｘ 3 steps are mountable.

４. Enjoy Extendability with Options
By focusing on the extendability which is one of enjoyable feature LUBIC, we made efforts on the interaction with various options. The original case can be created with "Lubic BasicNE".


Adding Sparkling Options	Variety of Rich Accessories	Bottom Parts
Neon part providing sparkling lights on the inorganic PC case.	There a dozen of options and a wide range of screws or brackets available in various shapes.	Casters can be attached on the bottom parts of the case.

■Product Description
Product Name　　　：Lubic StandardATX
Frame Color　：Blue / Apple Green/ Black / Champaign Gold / Red / Silver

Model Number	Frame Color	Price	Released Date	JAN Code
Lubic StandardATX-BL	Blue Frame	Open	February 2005	4571139321015
Lubic StandardATX-AG	AG Frame	Open	February 2005	4571139322722
Lubic StandardATX-BK	Black Frame	Open	February 2005	4571139321039
Lubic StandardATX-CG	CG Frame	Open	February 2005	4571139322739
Lubic StandardATX-RD	Red Frame	Open	February 2005	4571139321053
Lubic StandardATX-SV	Silver Frame	Open	February 2005	4571139321060

[Package Contents]
+ 192mm Lubic Frame x4
+ 256mm Lubic Frame x2
+ 448mm Lubic Frame x9
+ Assembly Screws
+ Motherboard Fixing Panel x１
+ Nut Spinner
+ Power Switch
+ Cotton Gloves used for Assembly
+ Japanese Instruction Manual

[Compatible Sepcification]
+ ATX
+ microATX
+ FlexATX

[Category]
+ PC Case Assembly Kit

[Dimension]
+ 490mm（D）/204mm（W）/486mm（H）

［Notes］
* Although Lubic frames are created with close attention, an unnoticeable scratch may be found only occasionally.
We do NOT warranty for the scratches unless it degrades the functionality.
* The colors displayed above may be different from actual colors depending on the using browser or setting.
* No assembly parts are included in this product.

【Contact below for product related inquiries】
KAIREN Co., Ltd.
Hoei BLDG. 11-1, Miyuki-cho, Tokorozawa-shi, Saitama Pref. Zip 359-1115
TEL：81-4-2929-6296　FAX：81-4-2929-6297　
・Inquiries related to our products
