December 14, 2004
Product Information

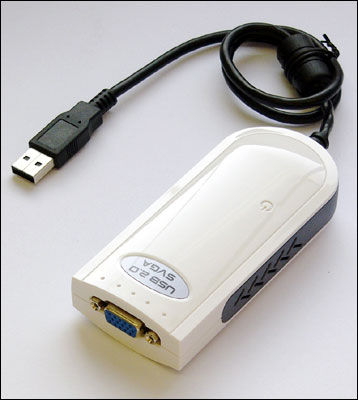

@A New Release of USB2.0 Dedicated Multi Display Device, "Sign as VGA White Box"

KAIREN Co., Ltd. will start nationwide distribution of "Sign as VGA White Box" with its capability upgraded from the end of January 2005 for the purpose of expanding the use of "Multi Display" device.
@The release lineup are "Blue Box" already launched on last July, "Green Box" already launched on last September and "White Box" to be launched this January. The prices for each models are all open price.We released "Sign as VGA" series as an USB 2.0 dedicated VGA ahead of any other companies in the industry. We had been putting effort into studying and development aiming for achieving popularities as well as market penetration and establishment of USB connection VGA."Sign as VGA White Box" to be released this time is not only an additional color model to the traditional color variations but has a latest driver utilizing the development experiences and knowhow. With this latest driver, this unit can perform both multi desktop feature and clone desktop feature that responds to the presentation-oriented users.Furthermore, the world's first feature enabling the concurrent use of "Multi Desktop Feature" and "Clone Desktop Feature" was implemented on the "Sign as VGA" series for the purpose of versatile use, which is the top level lineup of USB connection VGA.


Product Name
Price
Released Date
JAN Code
USB2.0 Dedicated Multi Display Device
Multi Desktop and Clone Desktop Feature
USB20SVGA-WH
Open
End of January 2005
4571139328632
yWith only USB connection, a multi desktopeEnvironment can be implemented easilyz

With only an easy set up of just connecting the unit to the PC after driver installation, even a PC beginner can build a multi desktop environment without anxiety.
As this is an USB device, it can be used with desktop PCs as well as laptops.*1
yAdvanced multi display and clone desktop feature are newly addedz

A "Clone Desktop Feature" capable of displaying the same desktop screen on 2 monitors is newly added. This feature will respond to the needs of a wide range of users. *2
yThe World's First Feature of Enabling Simultaneous Display on both Multi Desktop and Clone Desktop !z

The simultaneous use of "multi desktop" and "clone desktop" with 1 unit of PC, which was impossible to be implemented with the existingt multi display, can now be performed by connecting multiple units of "Sign as VGA". *3

For example, a multi display environment can be established on 4 monitors in total by connecting 3 units of Sign as VGA to "Blue Box", "Green Box" and "White Box". Under this status, the allocation of the monitors can be set as one unit for primary display, second unit for clone display of the primary display, and the rest of 2 units for multi desktop display of the primary display. *4
yColor number increased for displaying the maximum resolution screen, capable of supporting up to 1024‚˜768‚˜32bitz

The maximum resolution is increased from 1024‚˜768‚˜16bit to 1024‚˜768‚˜32bit. By increasing the number of colors, the multi desktop feature of "Sign as VGA" can be used more conveniently with enabling painting and drawing applications. *2

[Package Contents]
+ USB20SVGA-WH
+ Set up CD ver5.5
+ Japanese Instruction Manual
+ Warranty

[Compatible Resolution]
+ 1024~768 32/16/8bit
+ 800~600 32/16/8bit
+ 640~480 32/16/8bit
[Operation Environment]
+ Desktop PC or laptop with having an USB2.0 standard USB port
+ Windows XP, Windows 2000

[Connector Type]
+ PC SideFUSB2.0iTYPE-Aj Connector
+ Monitor SideFD-Sub15Pin Connector
mNotesn
*1 As this device is dedicated to USB2.0 only, the operation with USB1.0 or 1.1standard is NOT guaranteed.
*2 This feature can be activated with Sign as VGA Blue Box and Green Box by updating to the latest driver.
*3 The use of the same color model on the same PC is NOT available. When connecting multiple units of Sign as VGA to the same PC, please be sure to combine models with different colors. Each one unit of Blue Box, Green Box and White Box (3 units in total) can be connected to the same PC.
*4
A clone desktop is a feature that enables to display a duplicatd image shown on the primary display. However, a duplicate display on the extended monitor is NOT available.


yContact below for product related inquiriesz
KAIREN Co., Ltd.
Hoei BLDG. 11-1, Miyuki-cho, Tokorozawa-shi, Saitama Pref. Zip 359-1115
TELF81-4-2929-6296@FAXF81-4-2929-6297@
